Monday, 27 July 2015

Below Smithfield Market - More of Crossrail at Farringdon

You will have most probably already ready my first blog about my visit last Monday, 20th July, but there was oh so much more to show and tell!

The project manager took us wherever we wanted to go and the tour would not have been complete without seeking out the underground Victorian tunnels, especially those that were used to bring the meat to Smithfield market by rail.  They will come into use again once Crossrail is up and running as shunting areas for South West trains and various other railway related works.

As we left behind us the shuttering, blasting, spraying and sheeting of the modern engineering practice, you immediately were drawn to the extraordinary skill of the brickwork of the old tunnels. They are immense, long, deep and the vaulted ceilings are a wonder. The tracks are still underneath just covered up with aggregate and chalk for the time being to protect them from the current comings and goings of machinery.  Part of the tunnels, under Smithfield Market will be the power house for London Underground, cables and technical stuff being re-routed and made tidy as part of a Crossrail agreement.

Also a northern section of Smithfield Marked is currently propped up by squat black boxes the size of a catering tin of tomatoes! See picture below. Closely monitored, I can assure you, and sight to behold and wonder at. All movement in all parts of the excavation and building works are closely monitored by prisims attached to walls and checked with clever technology, so the minutest movement can be discerned.

Walking through the tunnels to the end we come out to see the rear of the new Farringdon Station, with the Tube line running along to our right behind Cowcross Street.

Narrower tunnels on the right side once used as office
and for storage by the Shunting Manager, space to make
a brew!
Under a bridge - name now obscured by graffiti

How to hold up a large building! Floating Smithfield Market
Example of the clever device that is holding up the foundations of Smithfield Market.

Great brickwork - all of one piece.
Looking back to Barbican Station across the Farringdon site.

Looking down the Victorian tunnel to our exit point.


The cut-out oblong square in the roof is where the carcasses were hauled up to the meat market.

Coming up to the Snow Hill Curve that feeds to the left, we are going for the right.
At one time, long ago, connected to the Post Office stop.
A decorated Victorian post not sure if it's an air shaft or a lamp post of sorts?

Trains coming and going from Barbican Station


Looking towards the new station at Farringdon.

The colour orange!


Great shafts used for boring holes horizontally which are then filled with cement.
These go for many metres in a 'sun ray' pattern in all directions. They are and used to stablilise the ground
around the tunnel site and fan out for many metres.

Underground lines leading to Barbican Station, behind Cowcross Street.
Special thanks to the Project Manager and Crossrail staff who made this a very special tour!
A job well done and on time. Looking forward to seeing the completed project in 2018.

Sunday, 26 July 2015

Going underground with Crossrail - 20th July 2015


Visit to Farringdon Crossrail

Farringdon Crossrail Site 26th November 2014



By special invitation to tour the development of the Crossrail hub at Farringdon was a wonderful surprise and I could not sleep the night before with the excitement and anticipation of this visit.







There were only six of us who were met by the Project Manager at the turnstile to the Charterhouse Entrance of the site. We had a stringent Health & Safety talk prior to donning our PPE, trousers, jackets, boots, hard hats, glasses and gloves, thankfully orange is my favourite colour!  Health & Safety and protection throughout the site for everyone is a super high priority, you are aware of this wherever you go. Warnings, signs, briefings at various levels as to what was going on, whistles blowing, watch our for red lights monitoring air quality control. This is not the kind of building site I played on when I was a kid!

For all this the vast hole created to get the Tunnel Boring Machines (TBM) in was now fast being covered over and filled in with structures to house escalators, lifts, plants, concourses, exits and entrances, service tunnels, all now taking shape, since the TBMs fell silent.

There were four on site, two are infilled with concrete, one with a time capsule, and both buried on site. One was named Ada after Ada Lovelace, under Charterhouse Square, and the other Phyllis (after Pearsall) under Lindsey Street. The two remaining Elisabeth and Victoria, are being dismantled by the same teams that put them together at the start of this mammoth tunnelling task in this section of Crossrail. Short film here made after our visit! http://londonist.com/2015/07/video-inside-farringdon-crossrail#gallery=660069,660078


video
Spraying concrete in the lower escalator shaft.


This is the beginning of the end for this site, an odd thing to say when completion is not due until 2018, but looking at the bigger picture, the major work is done and believe it or not, the idea whole idea of  Crossrail began circa 1945!

Farringdon site November 2014

Farringdon July 2015

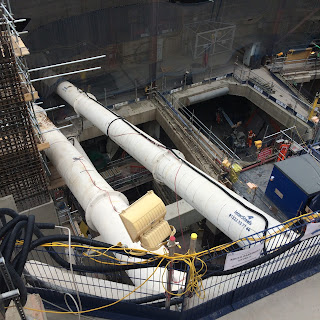

The white tubes are acting as supports they will be removed

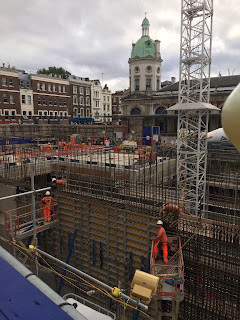

Shuttering going up for the concrete wall - the escaltor pit is behind it

The mesh screen in the background is concealing the Underground Line from Barbican

Above ground level with Long Lane in the distance

Up against the site off Long Lane.
They have moved out temporarily whilst building works going on!




Escaltor shaft in awkward place therefore dug out by diggers and then concrete
sprayed via a splended machine directed by man in 'spacesuit'

Esclator shaft

Concrete buttresses to base of concrete walls.
The stabilisers across top of photo will be removed eventually.



One of the tunnels awiting waterproof lining and final layer of concrete finish



Going deeper, if the beacon goes red we have to leave fast as air quailty compromised.

Final level, as deep as we go.

Elizabeth the TBM her work is done. Looks epic and most spectacular in size and form.

Endless air tunnels, funnels and equipment

Victoria TBM being dismantled. All her innards removed and the frame then
moved along and hoisted out (I think?)
The TBM are taken apart by the men who built them - specialists.

A large chunck of Victoria - the whole machine is recycled.
Too heavy to take a momento.

Fascinated by this huge pulsating vacuum that keeps air flowing.

The orange waterproof liner, which includes in the black strips pipes to allow grouting to be
poured in at a later stage if cracks or damage appears - forward thinking.
Tunnels guaranteed 120 years but will last much longer.

A finished main tunnel to the right, the left is a service tunnel.




The east-west breakthrough stretching from Paddington in the west to Woolwich in the east is complete to achieve this it required:

  • 8 tunnel boring machines
  • 7 million tonnes of excavated earth
  • 250,000 concrete segments
  • 3 years of underground construction
  • 42 kilometres of running tunnels
  • 98% excavated earth has been beneficially reused at sites across South East
  • Tunnelling works accompanied by one of the largest archaeological programmes in the UK

Read more about Farringdon Crossrail at http://www.crossrail.co.uk/route/stations/farringdon/current-works/
